Артикул: 85655
В наличии
ДКС
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Технические характеристики
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Grey |
| Rated voltage, V | 400 |
| Length, mm | 78 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 6 |
| Height at lowest possible mounting height, mm | 68 |
| Closing plate required | Yes |
| Type of slitting | Other |
| Type of cross disconnection | Other |
| With integrated test socket | Yes |
| Number of levels | 2 |
| Number of clamp positions per level | 1 |
| Connectable conductor cross section solid-core, mm² | 0.2...6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...4 |
| Connectable conductor cross section multi-wired, mm² | 0.2...1.5 |
| Rated current In, A | 32 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Sideways |

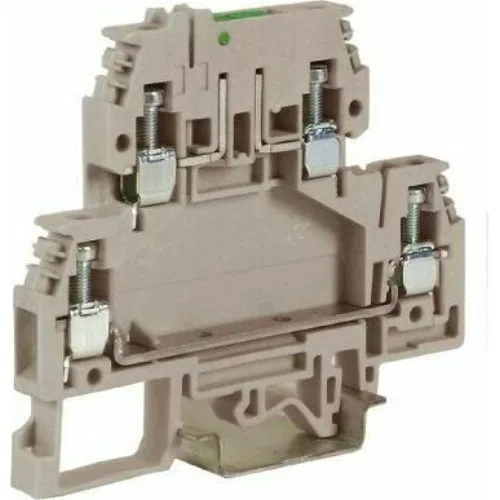

| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 4 mm² |
| Width | 6 mm |
| Q'ty of poles | 4 |
| Number of levels | 2 |
| Knife disconnect | Disconnector |
На нашем сайте вы всегда можете купить в России с доставкой по всем регионам России.
Дата обновления информации о товаре 2026-02-18 20:02:24
Технические характеристики 85655
Характеристики
- Clamp type
- Screw clamp
- Closing plate required
- Yes
- Colour
- Grey
- Connectable conductor cross section fine-strand with cable end sl
- 0.5...2.5
- Connectable conductor cross section fine-strand without cable end
- 0.2...4
- Connectable conductor cross section multi-wired, mm²
- 0.2...1.5
- Connectable conductor cross section solid-core, mm²
- 0.2...6
- Connection position
- Sideways
- Cross-section
- 4 mm²
- Height at lowest possible mounting height, mm
- 68
- Inflammability class of insulation material according to with UL9
- V0
- Knife disconnect
- Disconnector
- Length, mm
- 78
- Material insulation body
- Thermoplastic
- Mounting method
- DIN rail (top hat rail)/G-rail TH35/G32
- Number of clamp positions per level
- 1
- Number of levels
- 2
- Operating temperature, °C
- -40...80
- Product type
- Terminal block
- Q'ty of poles
- 4
- Rated current In, A
- 32
- Rated voltage, V
- 400
- Type of cross disconnection
- Other
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Type of slitting
- Other
- Width
- 6 mm
- Width/grid dimension, mm
- 6
- With integrated test socket
- Yes
