Артикул: 474117
В наличии
ДКС
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Технические характеристики
| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Blue |
| Rated voltage, V | 630 |
| Length, mm | 55.2 |
| Operating temperature, °C | -60…130 |
| Width/grid dimension, mm | 6.2 |
| Height at lowest possible mounting height, mm | 67.1 |
| Closing plate required | Yes |
| Type of fuse insert | G-fuse 5x20 mm |
| Type of fuse holder | Swivelling |
| Type of indication element for defect indication | LED |
| Supply voltage for defect-indication, V | 630 |
| Number of levels | 1 |
| Voltage type for defect indication | AC/DC |
| Connectable conductor cross section solid-core, mm² | 6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 4 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 4 |
| Connectable conductor cross section multi-wired, mm² | 4 |
| Rated current In, A | 6.3 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |

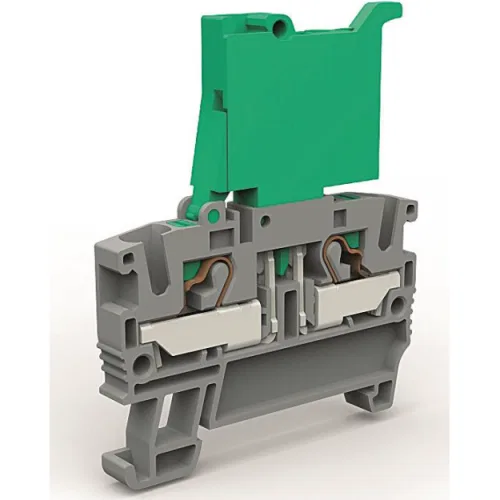

| Product type | Terminal block |
| Clamp type | Push-in |
| Cross-section | 4 mm² |
| Width | 6,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
| Knife disconnect | Disconnector |
На нашем сайте вы всегда можете купить в России с доставкой по всем регионам России.
Дата обновления информации о товаре 2026-02-18 19:49:14
Технические характеристики 474117
Характеристики
- Clamp type
- Push-in
- Closing plate required
- Yes
- Colour
- Blue
- Connectable conductor cross section fine-strand with cable end sl
- 4
- Connectable conductor cross section fine-strand without cable end
- 4
- Connectable conductor cross section multi-wired, mm²
- 4
- Connectable conductor cross section solid-core, mm²
- 6
- Connection position
- Above
- Cross-section
- 4 mm²
- Height at lowest possible mounting height, mm
- 67.1
- Inflammability class of insulation material according to with UL9
- V0
- Knife disconnect
- Disconnector
- Length, mm
- 55.2
- Material insulation body
- Thermoplastic
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of levels
- 1
- Operating temperature, °C
- -60…130
- Product type
- Terminal block
- Q'ty of poles
- 2
- Rated current In, A
- 6.3
- Rated voltage, V
- 630
- Supply voltage for defect-indication, V
- 630
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Type of fuse holder
- Swivelling
- Type of fuse insert
- G-fuse 5x20 mm
- Type of indication element for defect indication
- LED
- Voltage type for defect indication
- AC/DC
- Width
- 6,2 mm
- Width/grid dimension, mm
- 6.2
